INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Direct Mounting
Art. No.: 101476
1 x 104833 Reducer G1/8 male x G1/4 female
1 x 104837 Reducer M6 male x G1/4 female
1 x 104838 Reducer M8x1 male x G1/4 female
1 x 104840 Reducer M10x1 male x G1/4 female
1 x 104855 Extension 45 mm G1/4 male x G1/4 female
1 x 104823 Angle 45° G1/4 male x G1/4 female
INSTALLATION KIT STAR Direct Mounting
Art. No.: 101477
1 x 104833 Reducer G1/8 male x G1/4 female
1 x 104837 Reducer M6 male x G1/4 female
1 x 104838 Reducer M8x1 male x G1/4 female
1 x 104840 Reducer M10x1 male x G1/4 female
1 x 104855 Extension 45 mm G1/4 male x G1/4 female
1 x 104823 Angle 45° G1/4 male x G1/4 female
1 x 109420 Support flange STAR G1/4 male x G1/4 female

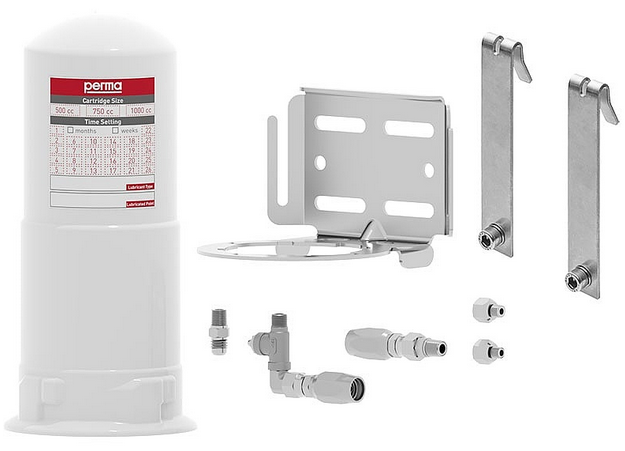

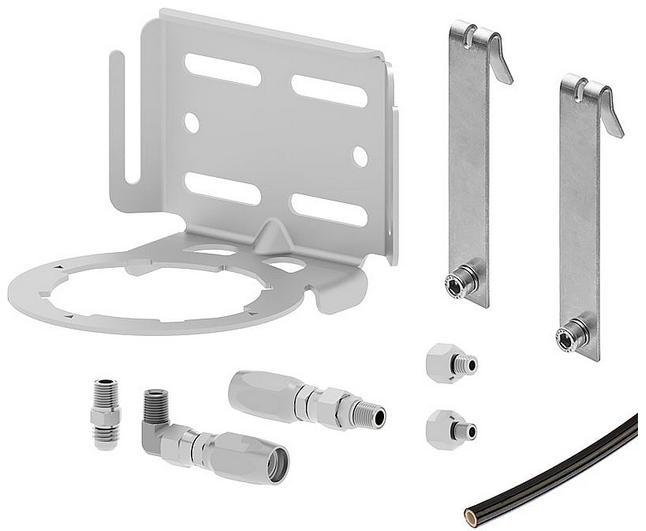

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA incl. 1.5 m hose
Art. No.: 101481
1 x Reducer G1/8 male x G1/4 female (brass)
1 x Reducer M6 male x G1/4 female (brass)
1 x Reducer M8x1 male x G1/4 female (brass)
1 x Reducer M10x1 male x G1/4 female (brass)
1.5 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)
2 x Hose connector G1/4 male for hose iØ 9.5 mm - push-lock (steel, zinc-plated)
1 x Mounting bracket CLASSIC, FUTURA, FLEX, NOVA 1-point G1/4 female (stainless steel)
1 x Angle 45° G1/4 male x G1/4 female (brass)
1 x Extension 45 mm G1/4 male x G1/4 female (brass)
INSTALLATION KIT STAR incl. 3 m hose
Art. No.: 101482
1 x Reducer G1/8 male x G1/4 female (brass)
1 x Reducer M6 male x G1/4 female (brass)
1 x Reducer M8x1 male x G1/4 female (brass)
1 x Reducer M10x1 male x G1/4 female (brass)
3 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)
2 x Hose connector G1/4 male for hose iØ 9.5 mm - push-lock (steel, zinc-plated)
1 x Mounting bracket STAR Standard Duty 1-point G1/4 female (stainless steel)
1 x Support flange STAR G1/4 male x G1/4 female (brass / plastic)
1 x Angle 45° G1/4 male x G1/4 female (brass)
1 x Extension 45 mm G1/4 male x G1/4 female (brass)
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 1-point 30 mm beam clamp mount incl. 1 m hose
Art. No.: 110068
1 x 109685 Bracket 1-point G1/4 female
1 x 109957 Beam clamp 30 mm
1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
1 x 109849 Angle 90° R1/4 male x G1/4 female
2 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
1 m 101555 Heavy Duty hose
1 x 109953 Reducer R1/8 male x G1/4 female
1 x 109954 Reducer R1/4 male x G1/4 female
1 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 1-point 65 mm beam clamp mount incl. 1 m hose
Art. No.: 110069
1 x 109685 Bracket 1-point G1/4 female
1 x 109958 Beam clamp 65 mm
1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
1 x 109849 Angle 90° R1/4 male x G1/4 female
2 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
1 m 101555 Heavy Duty hose
1 x 109953 Reducer R1/8 male x G1/4 female
1 x 109954 Reducer R1/4 male x G1/4 female
1 x 104840 Reducer M10x1 male x G1/4 female

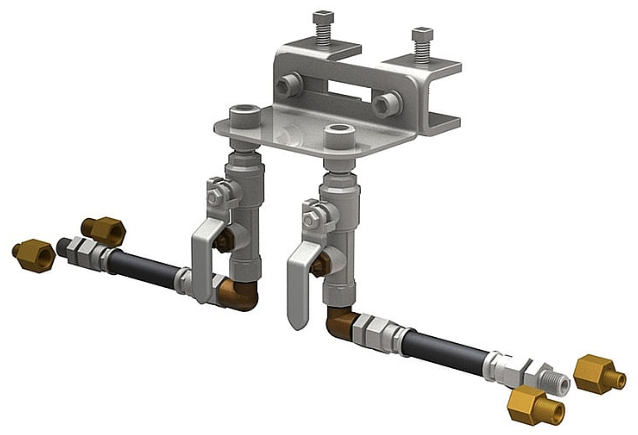

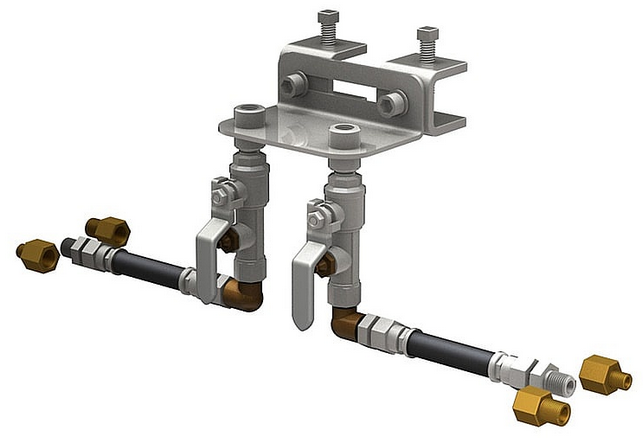

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 2-point 30 mm beam clamp mount incl. 2 m hose
Art. No.: 110070
1 x 109686 Bracket 2-point G1/4 female
2 x 109957 Beam clamp 30 mm
2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
2 x 109849 Angle 90° R1/4 male x G1/4 female
4 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
2 m 101555 Heavy Duty hose
0,25 m 109695 Hose spiral guard 25 mm
2 x 109953 Reducer R1/8 male x G1/4 female
2 x 109954 Reducer R1/4 male x G1/4 female
2 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 2-point 65 mm beam clamp mount incl. 2 m hose
Art. No.: 110071
1 x 109686 Bracket 2-point G1/4 female
2 x 109958 Beam clamp 65 mm
2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
2 x 109849 Angle 90° R1/4 male x G1/4 female
4 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
2 m 101555 Heavy Duty hose
0,25 m 109695 Hose spiral guard 25 mm
2 x 109953 Reducer R1/8 male x G1/4 female
2 x 109954 Reducer R1/4 male x G1/4 female
2 x 104840 Reducer M10x1 male x G1/4 female

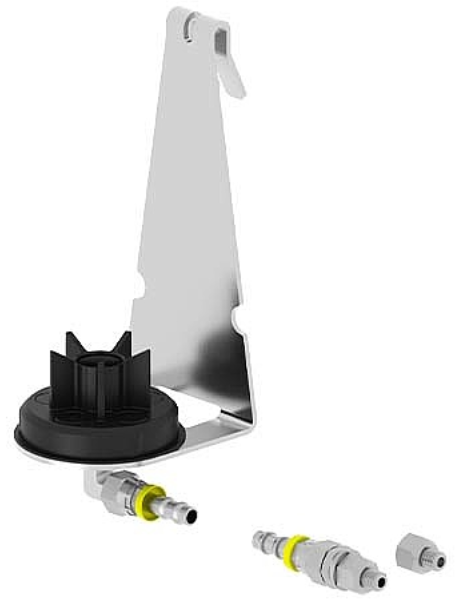

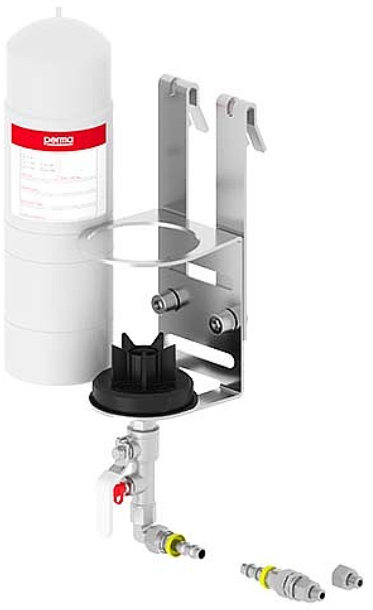

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 1-point cage hanger mount incl. 1 m hose
Art. No.: 110072
1 x 109689 Bracket cage hanger 1-point G1/4 female
1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
1 x 109849 Angle 90° R1/4 male x G1/4 female
2 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
1 m 101555 Heavy Duty hose
1 x 109953 Reducer R1/8 male x G1/4 female
1 x 109954 Reducer R1/4 male x G1/4 female
1 x 104840 Reducer M10x1 male x G1/4 female

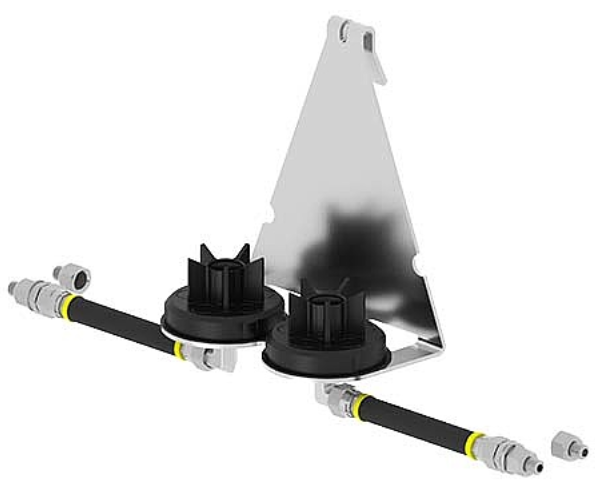

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 2-point cage hanger mount incl. 2 m hose
Art. No.: 110073
1 x 109690 Bracket cage hanger 2-point G1/4 female
2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
2 x 109849 Angle 90° R1/4 male x G1/4 female
4 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
2 m 101555 Heavy Duty hose
0,25 m 109695 Hose spiral guard 25 mm
2 x 109953 Reducer R1/8 male x G1/4 female
2 x 109954 Reducer R1/4 male x G1/4 female
2 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT STAR Standard Duty 1-point 65 mm beam clamp mount incl. 3 m hose
Art. No.: 116961
INSTALLATION KIT STAR Standard Duty 2-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116963
ACCESSORY KIT STAR Standard Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116951
ACCESSORY KIT STAR Standard Duty 2-point 65 mm beam clamp mount without hose
Art. No.: 116953
INSTALLATION KIT STAR Standard Duty 1-point cage hanger mount incl. 3 m hose
Art. No.: 116962
INSTALLATION KIT STAR Standard Duty 2-point cage hanger mount incl. 5 m hose
Art. No.: 116964
ACCESSORY KIT STAR Standard Duty 1-point cage hanger mount without hose
Art. No.: 116952
ACCESSORY KIT STAR Standard Duty 2-point cage hanger mount without hose
Art. No.: 116954
INSTALLATION KIT STAR Heavy Duty 1-point 65 mm beam clamp mount incl. 3 m hose
Art. No.: 116965
INSTALLATION KIT STAR Heavy Duty 2-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116967
ACCESSORY KIT STAR Heavy Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116955
ACCESSORY KIT STAR Heavy Duty 2-point 65 mm beam clamp mount without hose
Art. No.: 116957
INSTALLATION KIT STAR Heavy Duty 1-point cage hanger mount incl. 3 m hose
Art. No.: 116966
INSTALLATION KIT STAR Heavy Duty 2-point cage hanger mount incl. 5 m hose
Art. No.: 116968
ACCESSORY KIT STAR Heavy Duty 1-point cage hanger mount without hose
Art. No.: 116956
ACCESSORY KIT STAR Heavy Duty 2-point cage hanger mount without hose
Art. No.: 116958
ACCESSORY KIT ULTRA Standard Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116335
1 x Mounting bracket ULTRA
2 x Beam clamp 65 mm
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
ACCESSORY KIT ULTRA Standard Duty 1-point cage hanger mount without hose
Art. No.: 116336
1 x Mounting bracket ULTRA
2 x Cage hanger arm
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
ACCESSORY KIT ULTRA Heavy Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116337
1 x Mounting bracket ULTRA
1 x Protection cap ULTRA Heavy Duty
2 x Beam clamp 65 mm
1 x T-Adapter 2 x G1/4 female x R1/4 male
1 x Hydraulic-type lubricating nipple R1/4
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
ACCESSORY KIT ULTRA Heavy Duty 1-point cage hanger mount without hose
Art. No.: 116338
1 x Mounting bracket ULTRA
1 x Protection cap ULTRA Heavy Duty
2 x Cage hanger arm
1 x T-Adapter 2 x G1/4 female x R1/4 male
1 x Hydraulic-type lubricating nipple R1/4
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Standard Duty 1-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116339
1 x Mounting bracket ULTRA
2 x Beam clamp 65 mm
5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Standard Duty 1-point cage hanger mount incl. 5 m hose
Art. No.: 116340
1 x Mounting bracket ULTRA
2 x Cage hanger arm
5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Heavy Duty 1-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116341
1 x Mounting bracket ULTRA
1 x Protection cap ULTRA Heavy Duty
5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
2 x Beam clamp 65 mm
1 x T-Adapter 2 x G1/4 female x R1/4 male
1 x Hydraulic-type lubricating nipple R1/4
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Heavy Duty 1-point cage hanger mount incl. 5 m hose
Art. No.: 116342
1 x Mounting bracket ULTRA
1 x Protection cap ULTRA Heavy Duty
5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
2 x Cage hanger arm
1 x T-Adapter 2 x G1/4 female x R1/4 male
1 x Hydraulic-type lubricating nipple R1/4
2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
1 x Reducer G1/8 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
1 x Angle 90° R1/4 male x 9/16 JIC male
