MN - systemsNezařazenoHigh-Load

GMT Europe GmbH

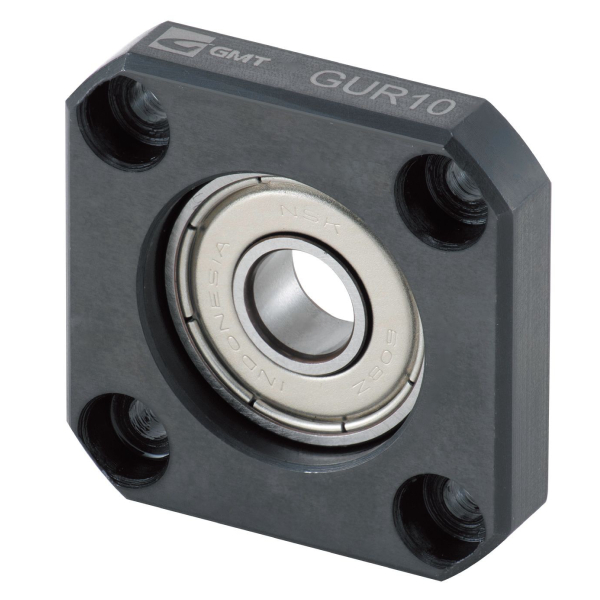

  • Ball Screw Support Unit-Support Side(High load Design)
  • High Load
  • Integrated Angular Contact Ball Bearings
  • DF: Face to face, is suitable for single loading directions
  • DFD: Face to back to face, is able to bear radial and two-direction of axial loading.
Name Schaftdurchmesser Montagetyp Material Optionen PDF 2D 3D Datenblatt
GWFF17-DF 17 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF17.pdf 2D/GWFF17-DF.zip 3D/GWFF17-DF.zip Datenblatt/GWFF.pdf
GWFF20-DF 20 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF20.pdf 2D/GWFF20-DF.zip 3D/GWFF20-DF.zip Datenblatt/GWFF.pdf
GWFF25-DF 25 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF25.pdf 2D/GWFF25-DF.zip 3D/GWFF25-DF.zip Datenblatt/GWFF.pdf
GWFF25-DFD 25 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF25-DFD.pdf 2D/GWFF25-DFD.zip 3D/GWFF25-DFD.zip Datenblatt/GWFF.pdf
GWFF30-DF 30 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF30.pdf 2D/GWFF30.zip 3D/GWFF30.zip Datenblatt/GWFF.pdf
GWFF30-DFD 30 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF30-DFD.pdf 2D/GWFF30-DFD.zip 3D/GWFF30-DFD.zip Datenblatt/GWFF.pdf
GWFF35-DF 35 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF35.pdf 2D/GWFF35.zip 3D/GWFF35.zip Datenblatt/GWFF.pdf
GWFF35-DFD 35 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF35-DFD.pdf 2D/GWFF35-DFD.zip 3D/GWFF35-DFD.zip Datenblatt/GWFF.pdf
GWFF40-DF 40 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF40.pdf 2D/GWFF40.zip 3D/GWFF40.zip Datenblatt/GWFF.pdf
GWFF40-DFD 40 Supported Side S50C+Black-Finish Ni-Plating pdf/GWFF40-DFD.pdf 2D/GWFF40-DFD.zip 3D/GWFF40-DFD.zip Datenblatt/GWFF.pdf

Order Info

Bearing Info

Preloading Info

Mounting Samples
